MultiRip Saw Blades
Discover Wood-Mizer's range of European manufactured, high-quality, TCT multirip circular saw blades. Engineered to work in the most demanding ripping applications, the range is designed to rip a single width of softwood lengthwise into multiple widths in one pass. Offering a full list of customizable options to suit your cutting requirements, the range can be fitted on single and double arbor multirip machines.

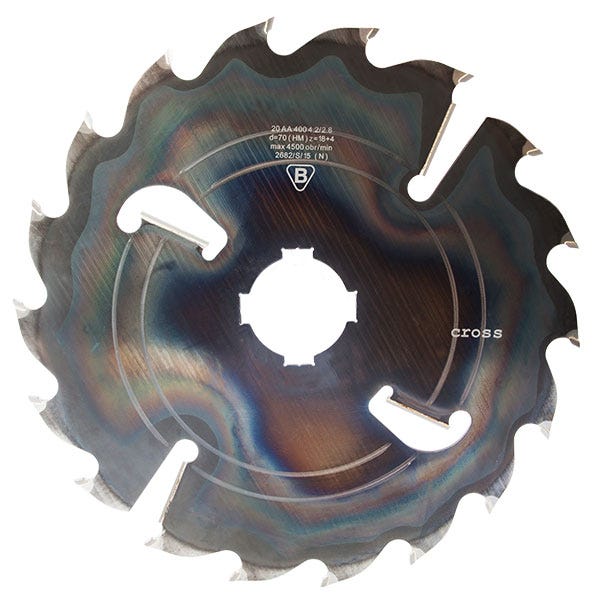

Multirip Saw Blades for Softwood
APPLICATION: ripping with raker teeth
MACHINES: multirip machines with one or two arbors
MATERIAL: wet or dry softwood
OPTIONS: black or orange coated saw blades
Best For:
Ripping
Multi-ripping
Wet Softwood

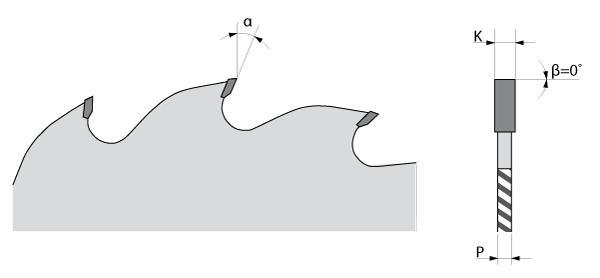

| D [mm] | B [mm] | H | Z | K | P | α |
β |
# |
|---|---|---|---|---|---|---|---|---|
| 200 | 70 | 4x20x5 | 16+2 | 2.5 | 1.8 | 23° | FTG | TMA200.016.70 |
| 250 | 70 | 4x20x5 | 18+2 | 3.1 | 2.2 | 23° | FTG | TMA250.018.70 |
| 250 | 70 | 4x20x5 | 16+2 | 3.1 | 2.2 | 23° | FTG | TMA250.016.70 |
| 300 | 70 | 4x20x5 | 18+4 | 3.1 | 2.2 | 23° | FTG | TMA300.018.70 |
| 300 | 70 | 4x20x5 | 16+4 | 3.1 | 2.2 | 23° | FTG | TMA300.016.70 |
| 315 | 70 | 4x20x6 | 18+4 | 3.8 | 2.5 | 23° | FTG | TMA315.018.70 |
| 350 | 70 | 4x20x5 | 18+4 | 3.9 | 2.5 | 23° | FTG | TMA350.018.70 |
| 350 | 70 | 4x20x5 | 16+4 | 3.9 | 2.5 | 23° | FTG | TMA350.016.70 |
| 400 | 70 | 4x20x5 | 18+4 | 4.2 | 2.8 | 23° | FTG | TMA400.018.70 |
| 400 | 70 | 4x20x5 | 16+4 | 4.2 | 2.8 | 23° | FTG | TMA400.016.70 |
| 450 | 70 | 4x20x5 | 18+4 | 5.0 | 3.2 | 23° | FTG | TMA450.018.70 |
| 450 | 70 | 4x20x5 | 16+4 | 5.0 | 3.2 | 23° | FTG | TMA450.016.70 |
| 500 | 70 | 4x20x5 | 18+6 | 5.2 | 3.2 | 23° | FTG | TMA500.018.70 |
| 500 | 70 | 4x20x5 | 16+6 | 5.2 | 3.2 | 23° | FTG | TMA500.016.70 |
| 550 | 70 | 4x20x5 | 18+6 | 5.5 | 3.2 | 23° | FTG | TMA550.018.70 |
| 600 | 70 | 4x20x5 | 18+6 | 6.2 | 4.0 | 23° | FTG | TMA600.018.70 |
| 600 | 70 | 4x20x5 | 20+6 | 6.2 | 4.0 | 23° | FTG | TMA600.020.70 |

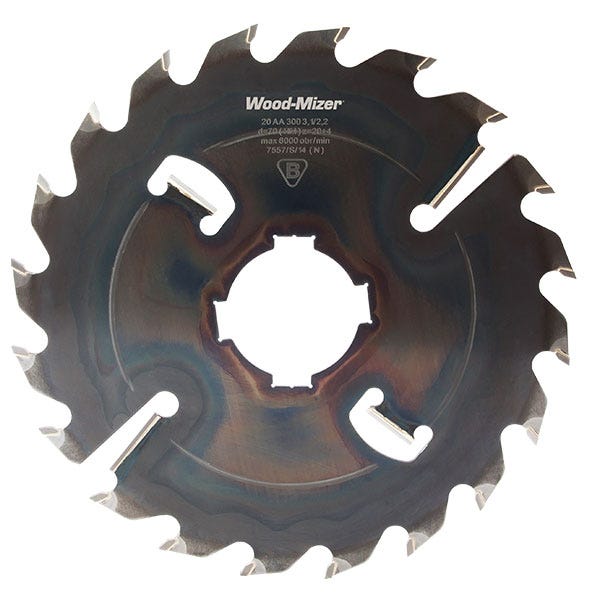

Multirip Saw Blades for Hardwood
APPLICATION: ripping with raker teeth
MACHINES: multirip machines with one or two arbors
MATERIAL: wet or dry hardwood
OPTIONS: black or orange coated saw blades
Best For:
Ripping
Multi-ripping
Wet Hardwood
| D [mm] | B [mm] | H | Z | K | P | α | β | # |
|---|---|---|---|---|---|---|---|---|
| 200 | 70 | 4x20x5 | 18+2 | 2.5 | 1.8 | 20° | FTG | TMB200.018.70 |
| 250 | 70 | 4x20x5 | 20+2 | 3.1 | 2.2 | 20° | FTG | TMB250.020.70 |
| 250 | 70 | 4x20x5 | 24+2 | 3.1 | 2.2 | 20° | FTG | TMB250.024.70 |
| 300 | 70 | 4x20x5 | 20+4 | 3.1 | 2.2 | 20° | FTG | TMB300.020.70 |
| 300 | 70 | 4x20x5 | 24+4 | 3.1 | 2.2 | 20° | FTG | TMB300.024.70 |
| 300 | 70 | 4x20x5 | 32+4 | 3.1 | 2.2 | 20° | FTG | TMB300.032.70 |
| 350 | 70 | 4x20x5 | 20+4 | 3.9 | 2.5 | 20° | FTG | TMB350.020.70 |
| 350 | 70 | 4x20x5 | 24+4 | 3.9 | 2.5 | 20° | FTG | TMB350.024.70 |
| 350 | 70 | 4x20x5 | 32+4 | 3.9 | 2.5 | 20° | FTG | TMB350.032.70 |
| 400 | 70 | 4x20x5 | 20+4 | 4.2 | 2.8 | 20° | FTG | TMB400.020.70 |
| 400 | 70 | 4x20x5 | 32+4 | 4.2 | 2.8 | 20° | FTG | TMB400.032.70 |
| 450 | 70 | 4x20x5 | 20+6 | 5.0 | 3.2 | 20° | FTG | TMB450.020.70 |
| 450 | 70 | 4x20x5 | 24+6 | 5.0 | 3.2 | 20° | FTG | TMB450.024.70 |
| 450 | 70 | 4x20x5 | 32+6 | 5.0 | 3.2 | 20° | FTG | TMB450.032.70 |
| 500 | 70 | 4x20x5 | 20+6 | 5.2 | 3.2 | 20° | FTG | TMB500.020.70 |
| 500 | 70 | 4x20x5 | 24+6 | 5.2 | 3.2 | 20° | FTG | TMB500.024.70 |
| 500 | 70 | 4x20x5 | 32+6 | 5.2 | 3.2 | 20° | FTG | TMB500.032.70 |
| 550 | 70 | 4x20x5 | 20+6 | 5.5 | 3.5 | 20° | FTG | TMB550.020.70 |
| 550 | 70 | 4x20x5 | 32+6 | 5.5 | 3.5 | 20° | FTG | TMB550.032.70 |
| 600 | 70 | 4x20x5 | 24+6 | 6.2 | 4.0 | 20° | FTG | TMB600.024.70 |
| 600 | 70 | 4x20x5 | 32+6 | 6.2 | 4.0 | 20° | FTG | TMB600.032.70 |
